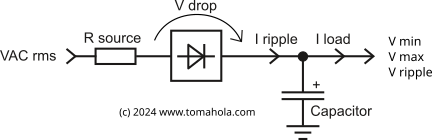

Rectifier Ripple Calculator

Note! Transformer secondary AC voltage is usually reported as the voltage with maximum load, and source resistance is not given, in the datasheet. To find out the unloaded voltage, measure it yourself. To find out the source resistance, load the transformer with a certain load current and measure the drop in secondary voltage. The source resistance is the voltage drop divided by the load current.

AC Frequency=	Hz
Rect Type=
VAC rms=	volt	(unloaded)
V drop=	volt
R source=	ohm
I load=	ampere
Capacitor=	farads

V min=	volt
V max=	volt
V ripple=	volt
I ripple=	amp	(peak)
