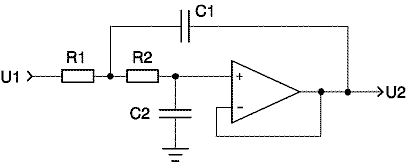

2nd Order OpAmp Lowpass Filter
|
Notes: C1 must be at least 2*C2 R1 and R2 are interchangeable If C1=2*C2 then R1=R2 If C1=C2 the filter has real poles and the passband is flat. If R1=R2 and C1>C2 the filter has complex poles. |
|
