Shortened Dipole Antenna

Frequency, f= Hz
Length, A= m
Coil placement, B= m
Radiator diameter, D= m
Coil inductance, L= H

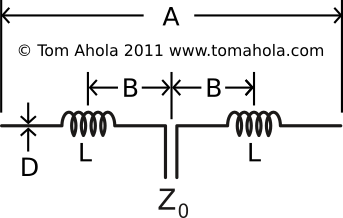

The shortened dipole is a dipole where the length of the dipole is reduced from the half wavelength by using inductors. Distance B should be less than A/4.
