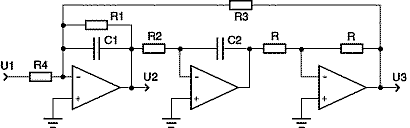

Biquad Filter
|
Notes: U2 is a bandpass output, Gain = -R1/R4 (inverting) U3 is a lowpass output, Gain = -R3/R4 (inverting) R is chosen arbitrary Specify f, Q and C1/C2. Then compute R3/R2 and R1. To compute R4 specify gain. |
|
